flow chart
Bottled water production line process
Products Description
Products Introduction:

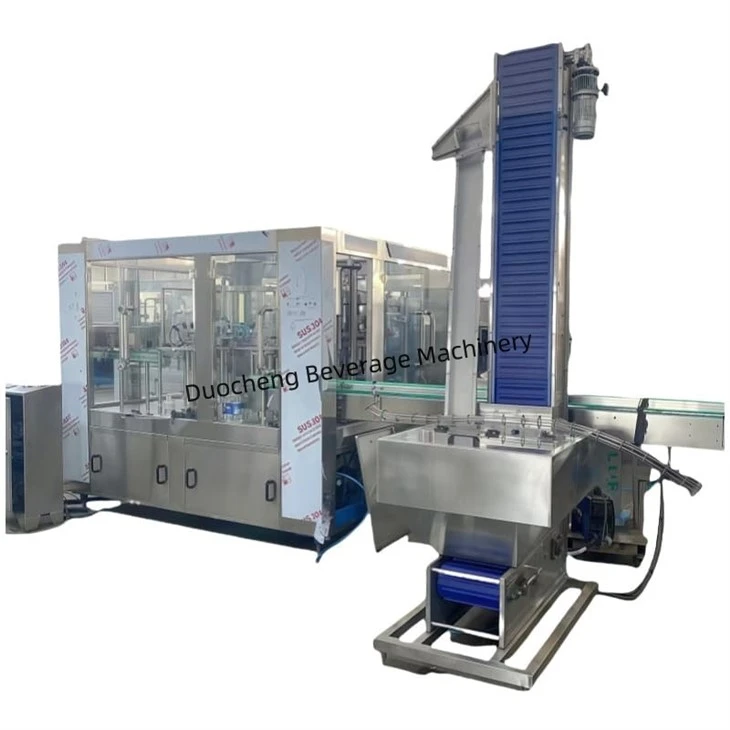

Washing, filling and capping 3-in-1 Machine
The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic. The machine is used in filling juices, mineral water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles. The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted.
Details
pure water filling machine flushing part
water filling machine filling part
bottle filling machine capping part
Technical Parameters
|
Containers and specifications |
||||
|
Project Name: Full Automatic Complete Mineral Water 2000-20000bph Production Line |
PH≥4.6 drinking water |
|||
|
Material |
Shape |
Filling volume |
Filling level(mm) |
Neck type |
|
PET Bottle |
Square or Round Bottle |
100-2000ml |
Distance from bottle neck According request |
As request |
|
Adjustable specifications of the bottle type |
【Middle Mould Base】Bottle diameter ≤105mm Bottle Height≤335mm |
|||
|
Customers need to buy additional change-over parts for the different bottles. |
||||
|
Container Label & Control Mode |
Packaging system |
Palletizing system |
||
|
Hot Melt Roll-Fed PVC Shrink Label Full Label/ Half Label Manual / Automatic |
Packing system |
Min, Spec. |
Manual |
|
|
Manual |
1*2 |
|||
|
User Ambient Conditions |
Temperature：10～40℃;Humidity：No dew |
|||
|
User Electrical Supply Specification |
Voltage：380V±5%, 3phase; Frequency：50HZ±1% |
|||
Customer site
