Products Description

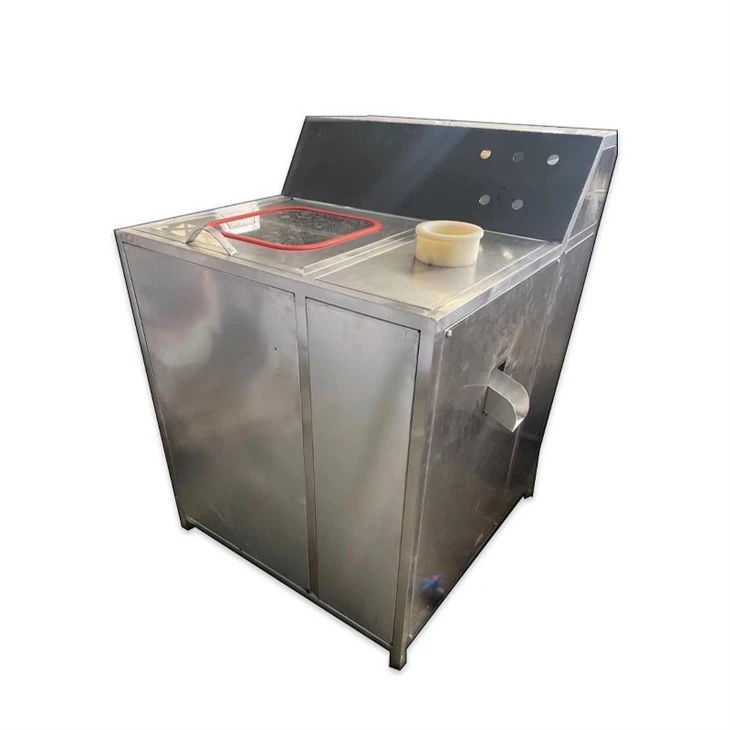

Semi-automatic lid removal and barrel brushing machine is suitable for pre-brushing of 5-gallon and 3-gallon recycled plastic barrels.
Working process:
Insert the lid of the empty barrel into the lid removal head, step on the pedal to remove the barrel lid, then insert the empty barrel into the box with a brush to rinse for about 10 seconds, then take the empty barrel out, and the process is over. Before starting the machine, check whether the power supply and air pressure are normal, and whether the motor direction is correct. If any abnormal situation is found, it can be used only after the fault is eliminated

Instructions for use:
1. Insert the mouth of the water bottle into the chuck of the capping machine and gently press it down into place.
2. Use your foot to step on the air valve pedal, and the cylinder drives the chuck to pull the bottle cap down.
3. Release the pedal, the cylinder rises, and the chuck of the capping machine opens, and the empty bottle is removed.
4. If you can't pull the bottle cap off once, you can step on the air valve several times in a row, and the bottle cap will be pulled off. If it still can't be pulled off after several times, this cap is difficult to pull off, and you need to loosen the air valve to force the bottle cap out. (This situation is very rare)
5. Put the empty barrel into the barrel brushing machine, close the door and it will work automatically.
This machine integrates capping and barrel brushing, and is suitable for capping and barrel brushing of 5 gallons and 3 gallons of large barrels of water. It automatically handles empty barrels according to the needs of mineral water and purified water manufacturers.

Product features:
Brushes: 8 (inside, outside, top, bottom)
Number of lid removal heads: 1
Number of brush buckets: 1
Applicable bucket specifications: 5 gallons (Φ270*490*56mm)
Rated voltage: three-phase four-wire/380V (standard three-phase electricity, if two-phase electricity/220V is required, please specify in advance)

Features of barrel brushing and lid removing machine:
This machine is composed of 25×25㎜ stainless steel square tube welded frame, transmission mechanism, pneumatic reversing lid removing mechanism, electrical control and water tank spraying. It has the characteristics of smoothness, wear resistance and corrosion resistance.
1. It integrates brushing, internal washing and external washing. The three working states are completed in the same cycle, saving time, labor and electricity.
2. Water supply mode. Users can reasonably choose circulating water supply, non-circulating water supply and compound water supply mode according to their needs.
3. The brushing effect is good. This machine is suitable for all-round effective brushing of the inner and outer walls of the barrel.
4. The operation is simple. You only need to open and close the door to complete the entire brushing process.

5. Pay attention to the power supply mode of this machine. N is the neutral line. After the power is turned on, fill the water tank with water and confirm the direction of motor rotation. Then turn on the panel power switch, and then open the flip cover to test run.
6. The barrel brushing and lid removal machine is suitable for the separation of lids and barrels of 3-gallon and 5-gallon drinking water recycling barrels. The barrel cover after separation is free of wear and deformation, and can be reused after disinfection, which improves the utilization rate of the barrel cover. This machine uses air pressure as power, which is safe and reliable. The rated air source pressure is 0.5Mpa/㎝2, the air intake volume is ≥0.1m3/minute, and the lid removal rate is 200~300 pieces/hour. Connect the air source, turn the recycling barrel upside down, insert the barrel mouth into the lid removal head, and then step on the foot switch, the barrel cover can be removed and slide out of the slide.
