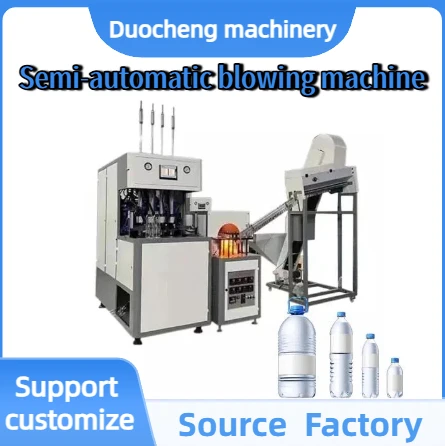

Products Description
Semi-automatic bottle blowing machine, suitable for PET bottles of any shape, such as carbonated beverage bottles, purified water bottles, juice bottles, edible oil bottles, cosmetic bottles, etc. Only one person is needed to operate, no special training is required, and installation and startup are simple.
Machine Details
Infrared lamps are used for heating, which have strong penetration and uniform heating.
3. The position of the lamps can be adjusted to meet the needs of various sizes of preforms
Customized bottle molds made according to customer needs, selected materials, long service life
Adopt button control panel switch, simple operation, high cost performance
Each mechanical action has a safety self-locking device. When a certain process fails, the program will automatically switch to a safe state. It adopts high pressure and double crank arm connecting rod clamping, with strong clamping force.
Blowing System Connection Diagram
Technical Parameters
Technique Parameter of blow molding machine:
|
Main parameter: |
||
|
Model |
KM-9B |
|
|
Container |
Product material |
PET |
|
Volume |
5L-10L |
|
|
Theoretical output |
300-500PCS/H |
|
|
Preform length |
15mm-460mm |
|
|
Preform inner diameter |
Φ15mm-200mm |
|
|
Moulding |
Max.mould plate Dimenstion(L x W) |
470x500mm |
|
Max.mould thickness |
370mm |
|
|
Clamping force |
100KN |
|
|
Mould opening stroke |
350mm |
|
|
Machine size and weight |
Main machine (L x W x H) |
193*72*183cm |
|
Main machine weight |
800Kg |
|
|
Heater (L x W x H) |
187*63*145cm |
|
|
Heater weight |
250Kg |
|
|
Power |
17.5kw |
|
Packing and delivery
