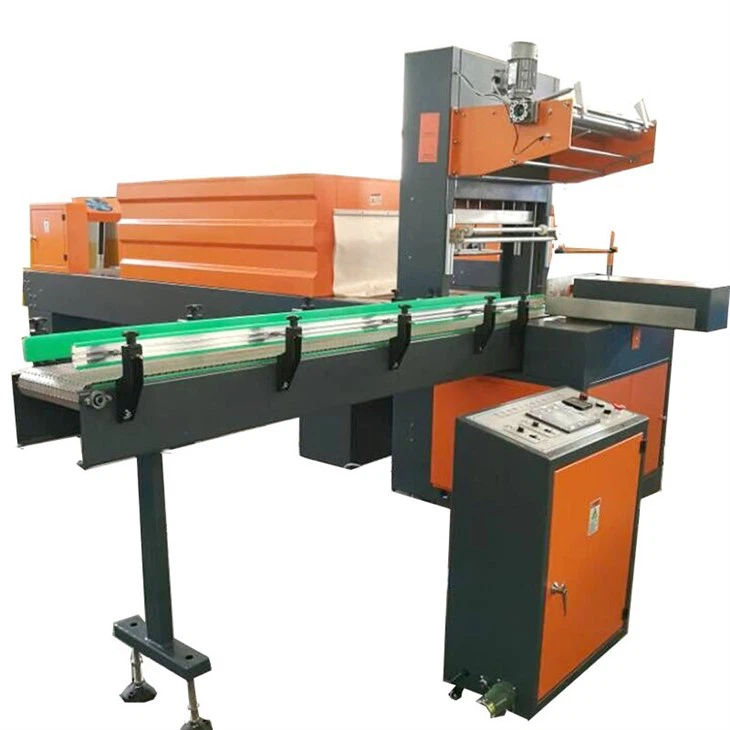

Film Packaging Machine

The filling principle of the L-type heat shrink film packaging machine is to place the product on the conveyor belt, and the heat shrink film is sealed and cut in L shape by the automatic sealing and cutting device to wrap the product. Then the product enters the heat shrink channel. Under the action of high temperature, the heat shrink film shrinks rapidly and fits tightly to the surface of the product to achieve the purpose of packaging.

Send Inquiry

How it works

The L-type heat shrink film packaging machine mainly places the product on the conveyor belt, and the heat shrink film is sealed and cut in an L shape by the automatic sealing and cutting device to form a bag that wraps the product. Then, the product enters the heat shrink channel. Under high temperature, the heat shrink film shrinks rapidly and fits tightly to the surface of the product to achieve the purpose of packaging.

product-742-562

Main technical parameters

product-875-439

Equipment Features

1. The film sealing machine has a heat-sealed and hot-cut structure, the seal is firm, and the edge is sealed neatly.
2. It is suitable for various bottle types and easy to operate.
3. The PID temperature controller is set, and its temperature control is accurate and energy-saving.
4. The equipment has automatic conveying, feeding, bottle sorting, shrinking, cooling and shaping. The production process is stable and reliable, and can work continuously for a long time to improve work efficiency.
5. The equipment is equipped with an automatic alarm device to further improve the safety and reliability of the equipment, and is easy to debug and maintain.
6. The equipment conveying level, feeding direction, and machine size can be customized according to customer requirements.

Packaging Process

Chain conveyor Film sealing shrink cool down

1. Chain conveying: The packages are placed directly on the chain for conveying.
2. Film sealing: The packages sent through the sealing and cutting line are pressed by the pressing device set above to prevent tipping. After the push cylinder is withdrawn, the film sealing cylinder and the film cutting cylinder work at the same time to complete the film covering and sealing.
3. Shrinkage: After the film covering is completed, the packages enter the shrinking furnace for shrinkage.
4. Cooling: After the packages are shrunk, they pass through the cooling device set at the tail end of the machine and enter the auxiliary rack to wait for stacking.

product-677-454
